Vortex measuring instrument for flow rate and Flow velocity in air and gases

Vortex VA

Flow rate and flow velocity measurement in wet and/or particulate-laden gases, biogas or exhaust gas, also according to Clean Air Guidelines, (TA Luft). Flow rate measurement of sludge aeration air, sewage gas, landfill gas, water vapour and engine intake air on test stations. Flow velocity in climatic wind tunnels, diluted car exhaust gas, traffic tunnels and in nuclear reactor technology.

How does a vortex flow measuring instrument work?

Derived from the Kármán phenomenon of vortex shedding, this principle of measurement is based on vortices forming around a bluff body in the sensor head. Their shedding frequency is detected with the help of an ultrasonic field, thus allowing for precise measurement of flow velocity and flow rate, from just 0.5 m/s, of air/gases.

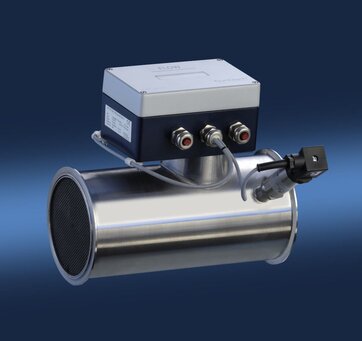

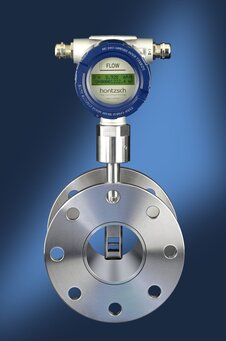

Höntzsch vortex meter: Vortex flow sensor

What are the advantages compared to other flow measuring sensors?

Flow rate measurements are to a large extent unaffected by changes in pressure, temperature, kinematic viscosity and gas composition. The great advantages of ultrasonic scanning of the flow velocity are the very low initial value of just 0.5 m/s and the wide measuring range!

Vortex meters have high long-term stability, no moving parts and are resistant to aggressive gases. They still deliver exact results even when the flow is particle-laden or condensate forms. This means that vortex flowmeters are highly suited for biogas measurement or flow rate measurement in exhaust emissions. They deliver exact measuring results even in change of gas composition, particle laden flow or condensate formation.

Sensing of rotational direction and with it recognition of the +/- direction of flow.

For which industries is the vortex sensor suited?

The range of applications for Höntzsch vortex flow meters is manifold. For example, the ex-protected (ATEX, CSA) vortex sensor is ideally suited for flow rate measurement in biogas, sewage gas and landfill gas. Through the process-related, partially low gas onset, the lowest flow velocities can be measured with our vortex meters, making them an excellent choice for biogas, sewage and landfill gas measurement . Furthermore, the gas composition or changes in the gas, as well as wet or particle-laden gas, have no effect on the measuring results. The optimized design of the flow sensor causes a negligible pressure loss when measuring volume flow, so that even critical processes and applications as well as normative guidelines can be adhered to. These features distinguish us from other providers of conventional vortex flowmetes.

Most common fields of application are for example:

Explosion-proof measuring of flow rate in biogas, sewage gas, landfill gas
Critical processes and applications in the chemical industry or petrochemistry
portable and fixed measurements in aggressive and explosive process gases, flare gas and exhaust gas
Dust laden and hot gases for example in burner control units of rotary kiln in the cement industry or filtration of exhaust gas
Flow measurement of engine intake air in engine test benches
Flow measurement in traffic tunnels, mining and waste disposal sites
Safety relevant applications up to SIL 3
Measurements in ventilation and aeration, VOC-plants
Measurements in exhaust gas/contaminated air
Measurements in thermal incineration plants, exhaust air cleaning plants RTO/RNV, regenrative post-combustion..
Flow measurement of sludge aeration air
Measurement in overheated water vapour
Flow measurement in climatic wind tunnels
In nuclear reactor technology
In CVS systems
Waste incineration plants

Design and most important features of our vortex sensor

vortex insertion probes for installation in pipelines with ID from 80 mm
vortex measuring tubes with ID from 25 mm
combined sensors for flow and temperature
vortex sensors for flow measurement in gases
for applications in condensate or particle-laden, aggressive gases (biogas measurement)
vortex meters have no moving parts
for flow rate measurement in accordance with TA Luft
SIL2/SC3 certification / Performance Level
marginal pressure loss
for application in explosive atmospheres (ATEX, CSA)
large turndown
corrosion-resistant designs
