Vane Wheel Measuring Tube FA(R) Di ZG40 / ZG41 / ZG42 ... Ex-d / ATEX

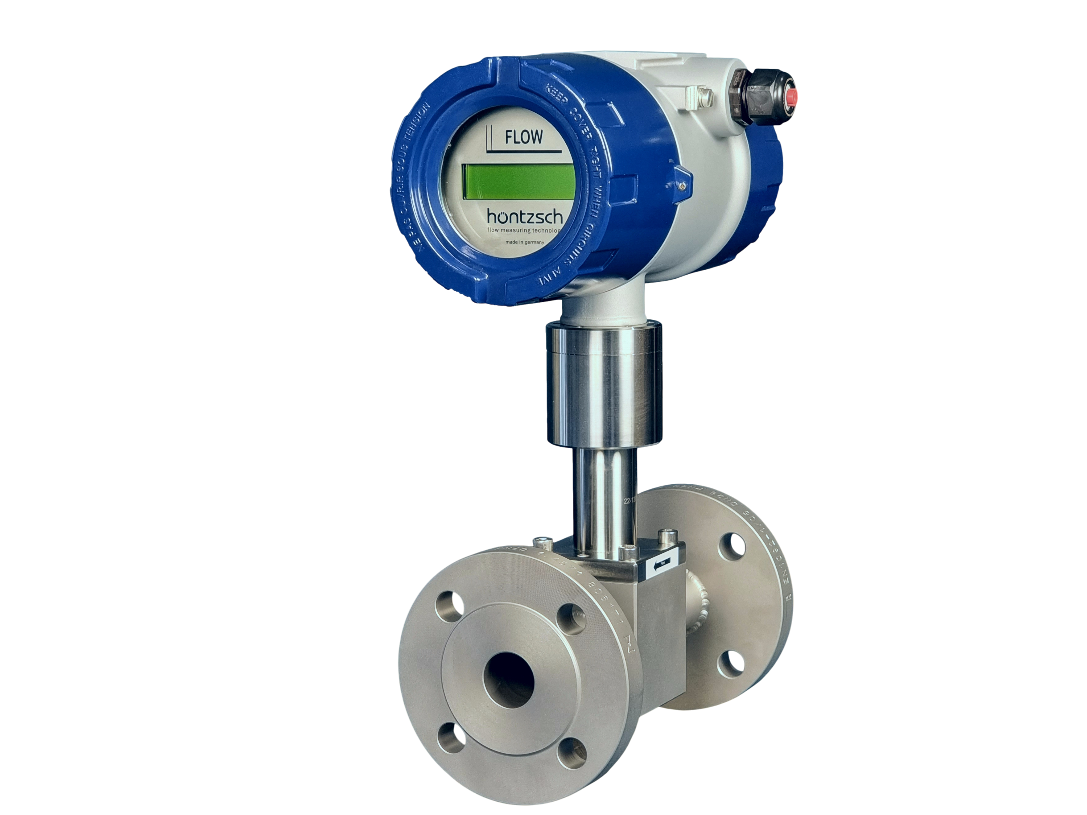

Vane wheel measuring tube with inside diameter 18.2, 25, 40, 50, 80, 100, 150 and 200 mm and integrated transducer UFA in Ex-d housing.

ZG40 measuring tube with integrated inlet- and outlet section

ZG41 measuring tube with cutting ring fittings

ZG42 measuring tube with length 200 mm and flange connection on both sides

Probe material: stainless steel.

Working temperature range up to 370 °C.

Suitable for fixed measuring of flow rate V/t [m³/h, l/min] in clean gases, briefly also in particle-laden mediums.

directional sensing (otional)

Signal evaluation with integrated UFA.

Měřící rozsah

±4 l/min ... ±10,000 m³/h in air / gases
±0.6 l/min ... ±590 l/min in water / liquids

Tlaková odolnost

up to 10 bar / 1 MPa overpressure

Teplotní odolnost

-40 ... +370 °C

Médium

Luft, Gase, Gasgemische
Wasser, Flüssigkeiten

Stupeň krytí IP

IP68 (connection housing)
IP68 (measuring tube with integrated vane wheel)

Stupeň ochrany ex

ATEX category 1/2G and category 1/2D (zone 0/1, zone 20/21)

Výstup

analog output 4-20 mA, limit value, quantity pulse, HART communication for parameter setting
